Rivet Shelving, Rivet Rack Shelving, Double Rivet Shelving
Available in Standard Weight or Heavy Weight, Fast Delivery!
Single Rivet Rack Shelving , Double Rivet Rack Shelving
Rivet Rack Shelving is also called Rivet Shelving, Warehouse Boltless Shelving, Boltless Shelving, Single Rivet Rack Shelving and Double Rivet Rack Shelving. Alot of different names for the same kind of shelving. It's an inexpensive, multipurpose shelving structure that gives you a customized mix & match approach to meet unique application needs.
Rivet rack shelving is one of the most versatile storage methods available and very easy to assemble with only a rubber mallet. We offer rivet rack shelving from brands like Nexel, Penco, and Hallowell to meet any industrial or commercial storage need you might encounter. From long-term record storage to garage organization to warehouse expansion, these easy to assemble Rivet Shelving can work with whatever organization or wire shelves your facility has in place already.
There are two different types of rivet shelving for a couple of different reasons. Single rivet shelving is more of a medium duty shelf which is used where you are storing things that are not quite as heavy. It's considered for medium duty storage, nothing heavy placed on it.
Then there is Double rivet Shelving components available for heavy duty warehouse or storage use. Double Rivet shelving features heavier steel components and double rivet attachment of all components. Double Rivet Shelving is therefore for the more serious, weight bearing shelving solutions.
A single rivet example: Notice it appears similar to a double rivet racking system, however with only one rivet holding the weight which offers a lower shelf profile.

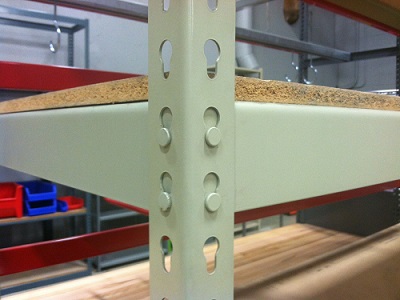

A double rivet racking example: Notice the two rivets that fit easily into the pre-made slots of the uprights. This configuration holds more weight, but at a price.
So from the pictures you can see the two are called “single rivet” and “double rivet” systems due to the actual design itself. A single rivet rack will only have one rivet that fits into the slot of the upright. The double rivet will have two rivets that fit into the pre-made slots on the upright.
Both of these racking systems can be put together without any other tool or bolts, nuts, etc… The benefit of a single rivet unit is you can fit more shelves into the setup because the beams are lower profile compared to the double rivet unit design. The double rivet unit shelf profile is 2.75 inches thick and the single rivet unit shelf profile is only 1.65 inches thick.

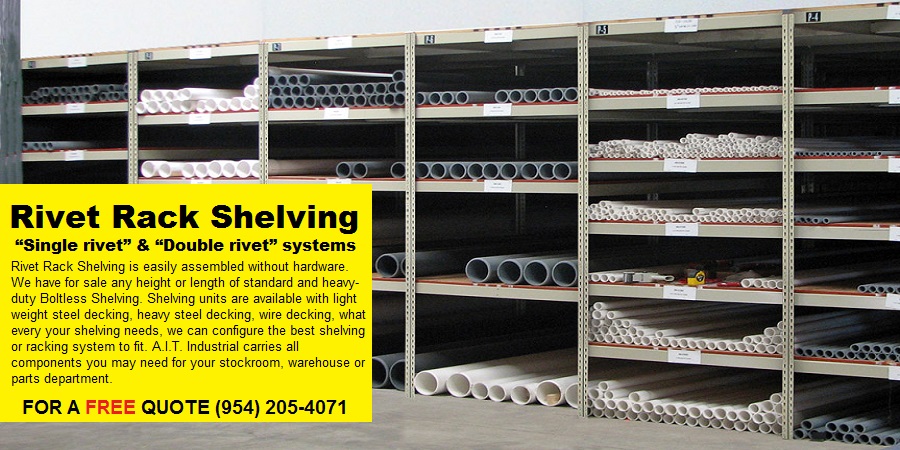

Rivet Rack Shelving is easily assembled without hardware. Available in any height or length, in standard or heavy-duty Boltless Shelving. Shelving units are available with light weight steel decking, heavy steel decking, wire decking, what every your shelving needs, we can configure the best shelving or racking system to fit. A.I.T. Industrial carries all components you may need for your stockroom, warehouse or parts department.
All components are engineered to fit snugly to one another without the use of nuts, bolts or fasteners. The unique design has rivets which are factory attached to all left-to-right and front-to-back beams. The rivets align with keyhole slots in the vertical posts. Once tapped into place using a standard rubber mallet, the units are tightly assembled providing maximum strength.
As far as the weight restrictions go there is a clear advantage to the double rivet if you have some serious weight to store. A single rivet unit you can hold up to 350 pounds per shelf, which in many situations is perfect. While the double rivet racking system can handle up to 2,000 pounds on the channel beam (shelves). So you can get see there's a significantly more weight holding capacity on the double rivet shelving unit.
The versatility of Rivet Rack Shelving allows you to mix and match components to meet your unique application. Whether you are looking to expand your shelving, upgrade shelving, or replace a portion, A.I.T. Industrial offers all of the Rivet Shelving Components you may need. Choose from our large parts selection like Double Rivet Beams, or one3 of the many shelving types available. No matter what shelving parts or pieces you need for your rivet rack shelving, we have all the rivet shelving components available.
For a FREE Consulatation & Quote Call (954) 205-4071 or use the "Get A Quote" link above..
